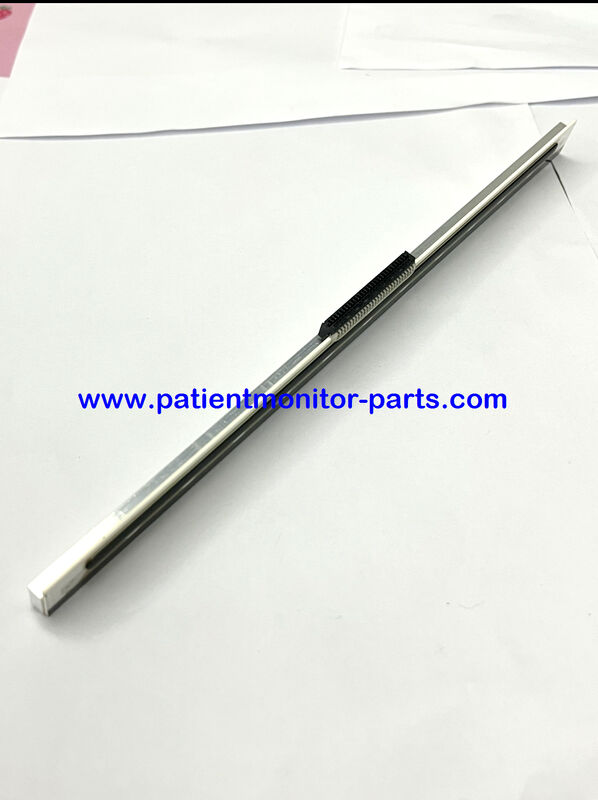

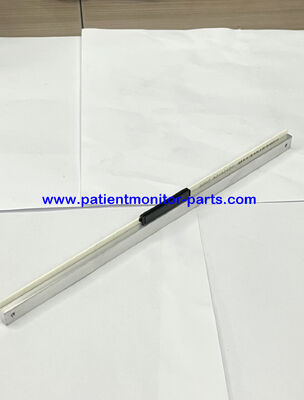

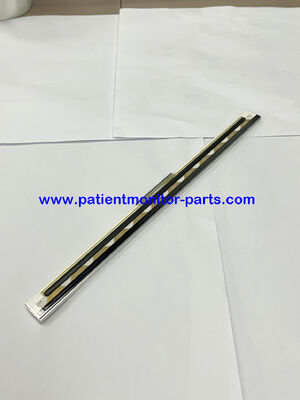

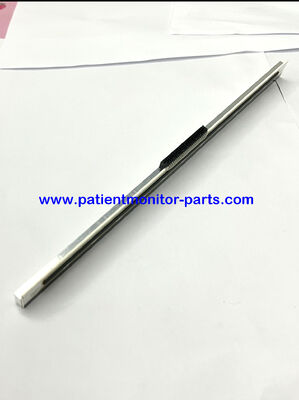

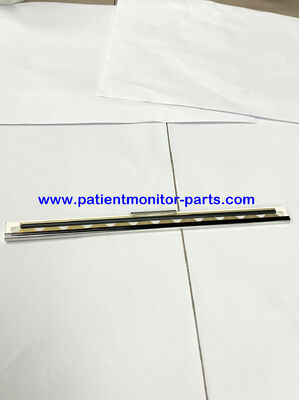

Philip Avalon FM20 / FM30 Thermal Printhead (TLPH)
Dettagli:
| Luogo di origine: | Originale |
| Marca: | PHILIP |
| Numero di modello: | FM20FM30 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | Negotiation, pls contact me |
| Imballaggi particolari: | Scatola di cartone |
| Tempi di consegna: | Entro 1-2 giorni lavorativi dalla conferma del pagamento |
| Termini di pagamento: | T/T, Western Union |
| Capacità di alimentazione: | 10 |
|
Informazioni dettagliate |
|||
| Condizione: | Bene | Garanzia: | 90 giorni |
|---|---|---|---|
| pacchetto: | Confezione in cartone | Modello: | FM20FM30 |
| Evidenziare: | Philip Avalon FM20 thermal printhead,FM30 fetal monitor printhead,TLPH thermal printhead for fetal monitors |
||
Descrizione di prodotto
Philip Avalon FM20 / FM30 Thermal Printhead (TLPH)
(Original Philip, for M2702A / M2703A)
1. Basic Information
- Official Name: Thermal Line Printhead (TLPH)
- Compatible Models: Avalon FM20, FM30 (M2702A, M2703A)
- Printer Type: 6-inch thermal array recorder
- Part Number (Original): 4522 991 25291 (assembly)
2. Optical / Printing Resolution
- Dot Density: 8 dots/mm (203.2 dpi)
- Effective Print Width: 150 mm (full paper width)
- Total Dots: 1200 dots (150 mm × 8 dots/mm)
- Dot Pitch: 0.125 mm × 0.125 mm
3. Electrical Characteristics
- Printhead Voltage: 5.0 VDC ±5% (logic) / 24 VDC ±10% (heating)
- Current Per Dot: ~20–25 mA (peak)
- Resistance Per Element: ~120 Ω (typical)
- Interface: 50-pin ribbon cable (to Recorder Adapter Board M2703-66430)
4. Mechanical & Performance
- Print Speed:
- Standard: 25 mm/s
- Fast: 50 mm/s (for review playback)
- Paper Speed Range: 1–50 mm/s (configurable)
- Lifetime: ≥1,000,000 lines (under rated conditions)
- Operating Temp: +5°C to +45°C
- Storage Temp: -20°C to +60°C
5. Paper Specifications (Matching)
- Paper Width: 150 mm (Z-fold or roll)
- Paper Type: Medical-grade thermal paper (HP 1911A / Philip 453564435211)
- Sensor: Optical reflective sensor (for black mark detection)
6. Key Features
- 5-channel recording: FHR1, FHR2, TOCO, MECG, annotations
- High contrast: For clear FHR/TOCO waveform reproduction
- Long-term stability: Ceramic heating elements, anti-corrosion coating
